Bench mountedHydraulic crimping toolsTOOLING

For our range of Rail industry and Industrial lugs

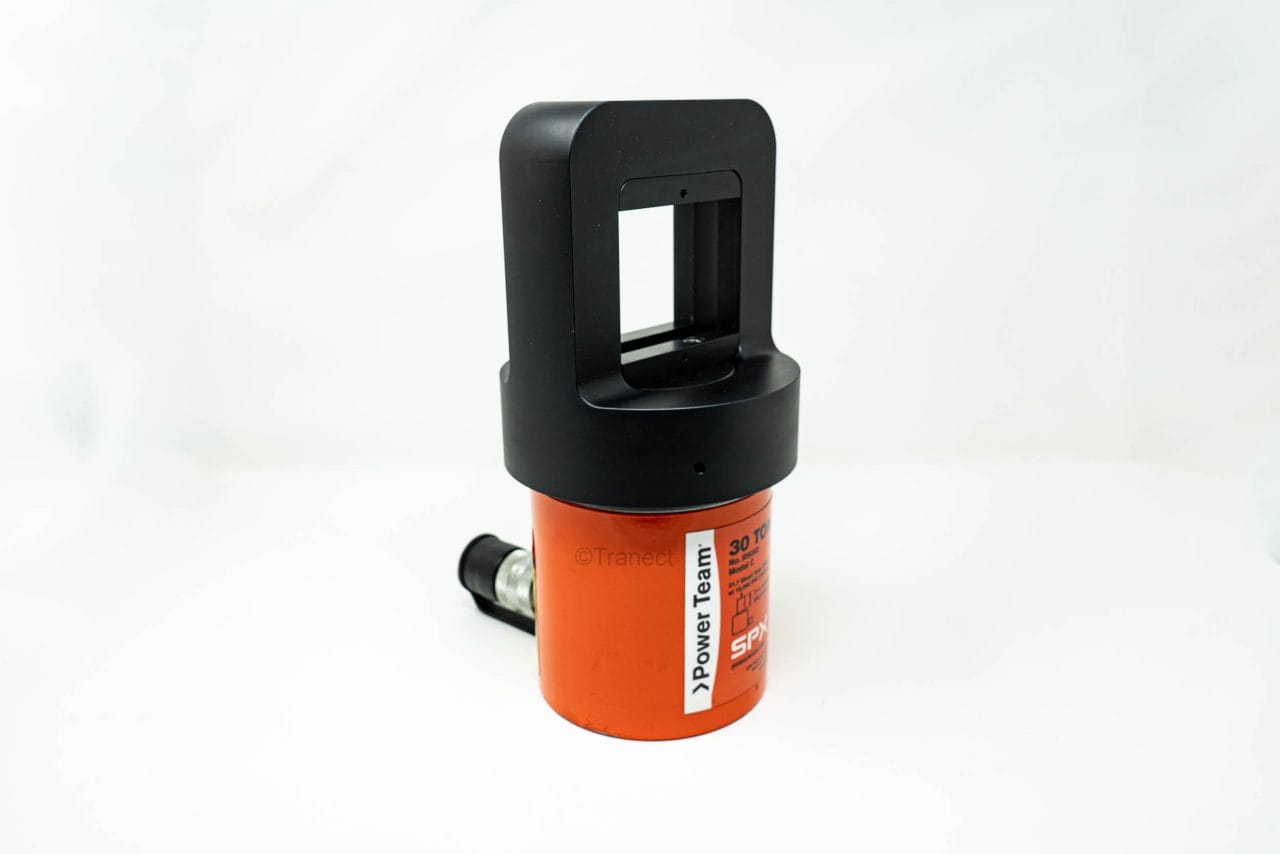

Tranect 30-ton Bench Mounted Hydraulic Crimping Press for use with Ultra Heavy Duty and Enhanced Heavy Duty Terminals is supplied with:

top die holder
bottom die holder
hydraulic coupler
hydraulic hose
hydraulic pump – choice of either electric or compressed air powered.
Tranect 35 Ton hydraulic crimping press is recommended for use with Tranect dies to crimp Tranect terminals.
Each press is stamped with the initials of the technician who assembled it, along with a date code – allowing total traceability.
All presses are supplied with a two year back to base warranty.We service and recondition old hydraulic crimping presses.

We can also supply a heavy duty hydraulic cable cutter for cutting up to 400 mm² cable.

Item	BR Cat No	G Corner ref
30 Ton Hydraulic crimping press	39/008318	30T Crimping Press
Pump, air operated	39/008323	LAHP
10 mm2 crimp dies		Die F
16 mm2 crimp dies		Die G
25 mm2 crimp dies	39/014511	Die H
35 mm2 crimp dies	39/014512	Die I
50 mm2 crimp dies	39/008177	Die J
70 mm2 crimp dies	39/008178	Die K
95 mm2 crimp dies	39/008179	Die L
120 mm2 crimp dies	39/008180	Die M
150 mm2 crimp dies	39/008181	Die N
185 mm2 crimp dies	39/008182	Die O
240 mm2 crimp dies	39/008183	Die P
300 mm2 crimp dies	39/008184	Die Q
400 mm2 crimp dies	39/008186	Die R
Hose+connectors – 2 mtrs	39/008238	BO/500/2
Hose+connectors – 3 mtrs	39/008239	BO/500/3
Hose connector – female	39/008098	BO/127
Hose connector – male	39/008099	BO/128
Top die holder	39/008233	TOPDH/R/35P
Bottom die holder	39/008228	BTMDH/R/35P
Go Gauge plate F to K	39/029061	TA13209
Go Gauge plate L to O	39/029063	TA13210
Go Gauge plate P to R	39/029065	TA13211

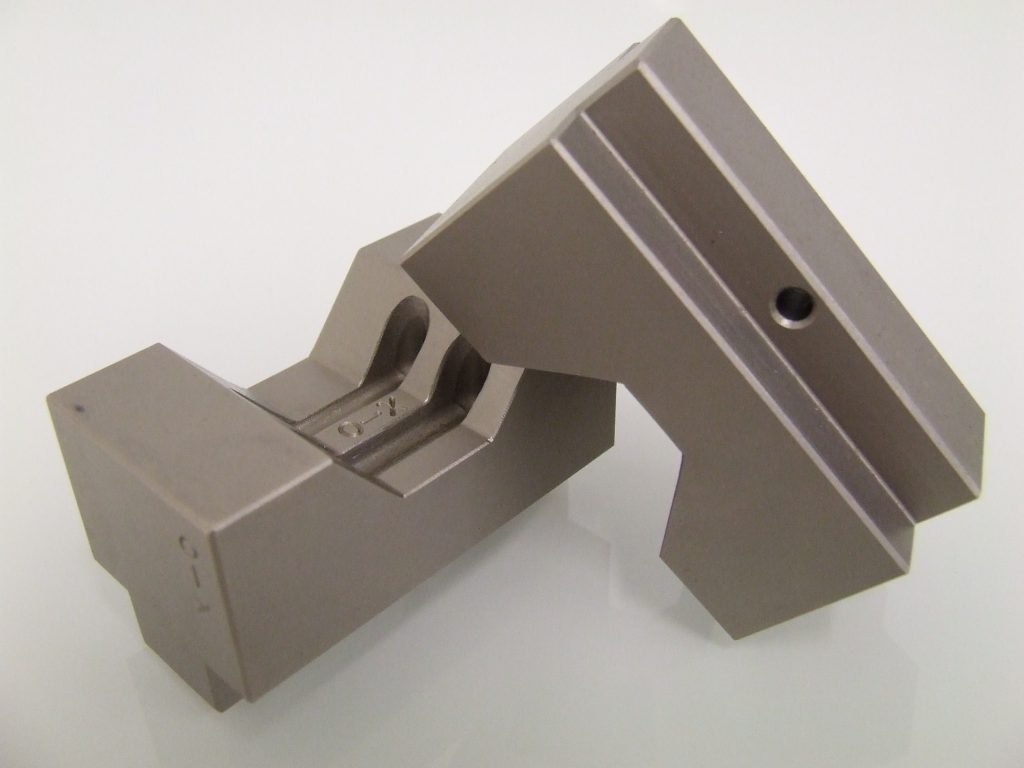

There is a crimp die for each size of standard terminal. Each crimp die is engraved with the crimp size code letter: F,G,H,I,J,K,L,M,N,O,P,Q,R and R.

There is a separate range of crimp dies for the Ultra-Heavy Duty terminals: K-X,M-X,N-X,O-X.

Operating instructions are available based on British Rail WOSS 560/4.

The crimp die is held in the die holder with a split pin.

There is a crimp die for each size of Heavy Duty and Enhanced Heavy Duty lugs. Each crimp die is engraved with cable size or crimp code letter: F, G, H, I, J and K for the G Corner lugs.

Operating instructions are available based on British Rail WOSS 560/4.

Crimp ‘GO’ gauge for G Corner lugs:

For crimp size:
